SVDEPER360SPL5P

Dell PowerEdge R360 1U Server, Xeon 6353P 5.4GHz, 32GB RAM, 480GB SSD, 4x 3.5" bays

Dell PowerEdge R360 1U Rack Mount Server, Intel Xeon 6353P 2.7GHz up to 5.4GHz 24MB Cache Eight 9x Core Processor with no intergrated Graphics, 1x 32GB UDIMM 5600MT/s ECC Memory, 1x 480GB SSD SATA Read Intensive 6Gbps 512e 2.5" Hot-Plug AG Drive, 3.5" Hybrid carrier, Chassis 4x 3.5" Hot Swap, Broadcom 5720 Dual Port 1GB On-Board LOM, 1 DWPD, Riser config 0, No Riser, Standard Bezel, No internal Optical Drive, Dual (1+1) fully Redundant H-P PSU 700W MM HLAC Titanium, 2x Rack Power cord 2m (C13/C14 10A), 3.5" Chassis with up to 4 Hot plug hard drives, Front PERC 11, Front PERC H755 front load, IDRAC9 Enterprise 16G, No Rack rails or Cable Management Arm, No Operating System

Overview:

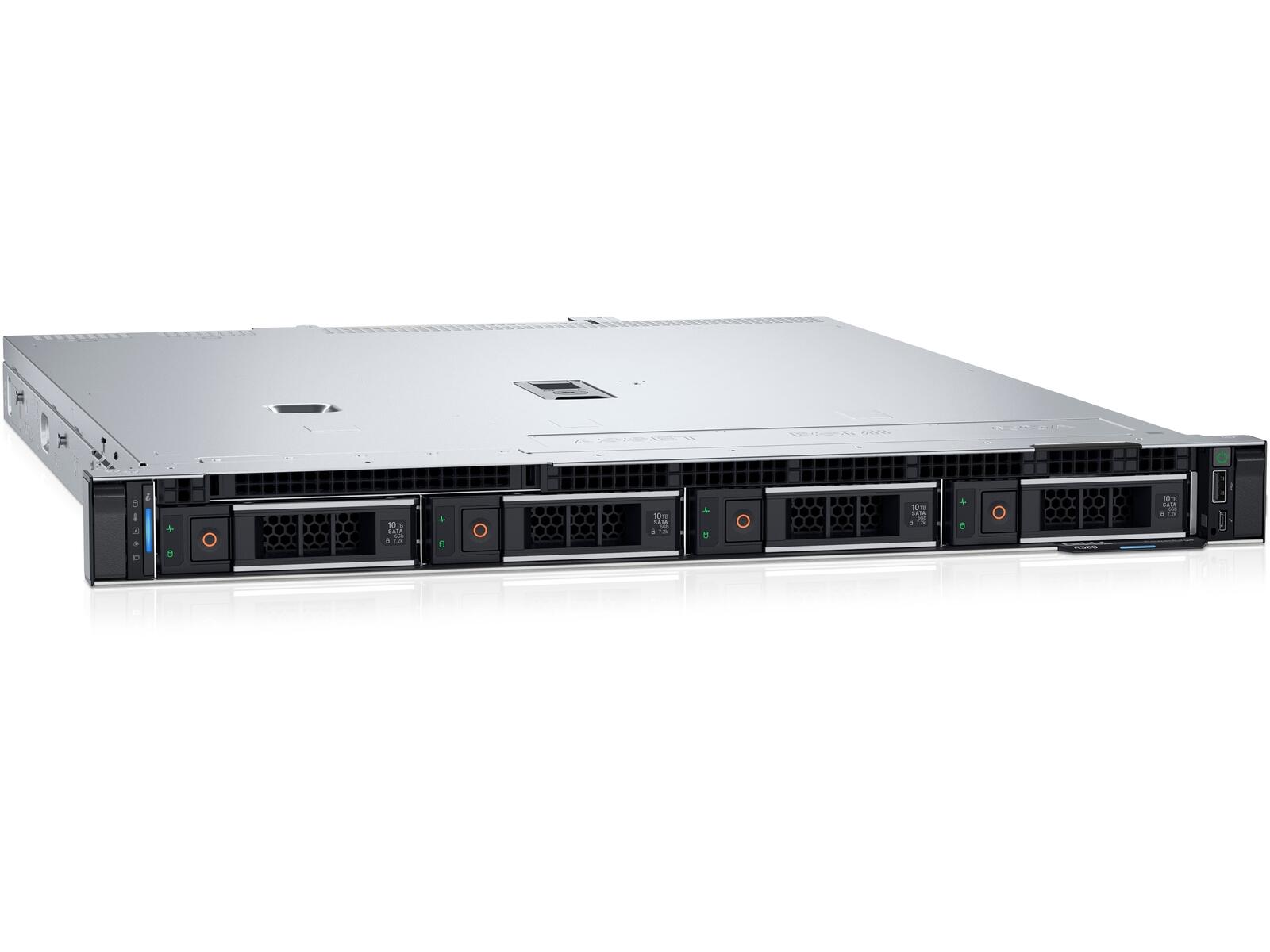

Dell PowerEdge R360 1U Rack Server for Efficient Compute
The Dell PowerEdge R360 delivers high-performance, secure, and versatile computing in a compact 1U rack form factor. Designed for small and medium businesses, remote offices, and near-edge deployments, this server offers a balance of processing power, memory capacity, and storage flexibility to meet demanding workloads. With intelligent automation, integrated security, and scalable management, the R360 simplifies IT operations while accelerating innovation.

Description:

This server is powered by a single Intel Xeon 6353P processor with eight cores running at 2.7GHz and turbo speeds up to 5.4GHz, supported by 32GB of ECC UDIMM memory at 5600MT/s for reliable performance. Storage includes a 480GB SATA SSD optimized for read-intensive tasks, housed in a 3.5" hybrid carrier with up to four hot-pluggable drives. Network connectivity is enabled through a Broadcom 5720 dual-port 1Gb onboard LOM, and the system comes with dual redundant 700W Titanium power supplies. Dell's iDRAC9 Enterprise 16G simplifies system management, monitoring, and lifecycle automation, while the chassis is designed for efficient cooling and easy front-access storage.

Features:

Processor and Memory
The R360 supports one Intel Xeon E-2400 series processor with up to eight cores or an Intel Pentium processor with two cores. Memory expansion includes up to 4 DDR5 UDIMM slots, supporting speeds up to 4400 MT/s and a maximum of 128GB ECC memory. This configuration ensures fast, reliable processing and supports memory-intensive applications.

Storage and Expansion
Flexible storage options include up to four 3.5" or eight 2.5" SAS/SATA drives, with support for boot-optimized storage subsystems (BOSS-N1 ) using M.2 NVMe SSDs. The server supports multiple internal and external RAID controllers, enabling scalable storage configurations and improved data protection. A single-slot PCIe expansion allows the addition of a 60W single-width GPU for accelerated workloads.

Security and Management
Dell's cyber-resilient architecture provides layered security throughout the server lifecycle. Key measures include cryptographically signed firmware, secured-core server functionality, silicon root of trust, secure boot, and data-at-rest encryption. Management is streamlined through iDRAC9, OpenManage Enterprise, and CloudIQ solutions, offering automation for deployment, monitoring, and maintenance, while also integrating with VMware vCenter, Microsoft System Center, and other enterprise tools.

Networking and Connectivity
The system comes with dual 1GbE LOM ports and front and rear USB options, including iDRAC Direct for management. Additional PCIe slots provide expansion potential for network or acceleration cards. The rack-ready 1U chassis includes up to four fans, optional filter bezels, and supports sliding rails with optional cable management arms.

Power and Efficiency
Power redundancy is maintained with dual hot-swappable 700W Titanium PSUs, ensuring consistent uptime. The server is engineered for energy efficiency without compromising performance, making it suitable for business-critical applications.

Deployment and Support
Dell provides comprehensive services for consulting, deployment, and staff training, enabling organizations to implement, configure, and manage their IT infrastructure effectively. ProDeploy and Education Services ensure smooth technology adoption while optimizing staff expertise for long-term efficiency.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SVDEPER360SPL5P
Processor	One Intel Xeon E-2400 series processor with up to 8 cores or One Intel Pentium G7400/G7400T processor with 2 cores
Operating System	Canonical Ubuntu Server LTS
	Microsoft Windows Server with Hyper-V
	RedHat Enterprise Linux
	SUSE Linux Enterprise Server
	VMware ESXi
Chipset	Intel C262 Chipset
Accelerators	Up to 1 x 60 W SW GPU
Memory	DIMM Speed
	Up to 4400 MT/s
	Memory Type
	ECC UDIMM
	Memory Module Slots
	4 DDR5 DIMM slots
	Maximum RAM
	ECC UDIMM 128 GB
Storage	Front Bay
	Up to 4 x 3.5-inch SAS/SATA max 64 TB
	Up to 8 x 2.5-inch SAS/SATA max 61.44 TB
	Mid Bay
	NA
	Rear Bay
	NA
Storage Controllers	Internal Controllers
	HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front
	External Controllers
	HBA355e Adpt
	Software RAID
	S160
	Internal Boot
	Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs
	USB
Security	Cryptographically signed firmware
	Data at Rest Encryption (SEDs with local or external key mgmt)
	Secure Boot
	Secure Erase
	Secured-core server
	Secured Component Verification (Hardware integrity check)
	Silicon Root of Trust
	System Lockdown (requires iDRAC9 Enterprise or Datacenter)
	TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management	Embedded / At-the-Server:
	iDRAC9
	iDRAC Direct
	iDRAC RESTful API with Redfish
	iDRAC Service Module
	Consoles:
	OpenManage Enterprise
	OpenManage Power Manager plugin
	OpenManage Service plugin
	OpenManage Update Manager plugin
	CloudIQ for PowerEdge plug in
	OpenManage Enterprise Integration for VMware vCenter
	OpenManage Integration for Microsoft System Center
	OpenManage Integration with Windows Admin Center
	Mobility:
	OpenManage Mobile
	Tools:
	Dell Repository Manager
	Dell System Update
	Enterprise Catalogs
	iDRAC RESTful API with Redfish
	IPMI
	RACADM CLI
	OpenManage Integrations:
	BMC Truesight
	Microsoft System Center
	OpenManage Integration with ServiceNow
	RedHat Ansible Modules
	Terraform Providers
	VMware vCenter and vRealize Operations Manager
Power Supplies	600 W Platinum 100 - 240 VAC or 240 VDC, hot swap redundant
	700 W Titanium 200 - 240 VAC or 240 VDC, hot swap redundant
Ports	Network Options
	2 x 1GbE LOM
	Front Ports
	2 x 1GbE LOM
	1 x iDRAC Direct (Micro-AB USB) port
	1 x USB 2.0

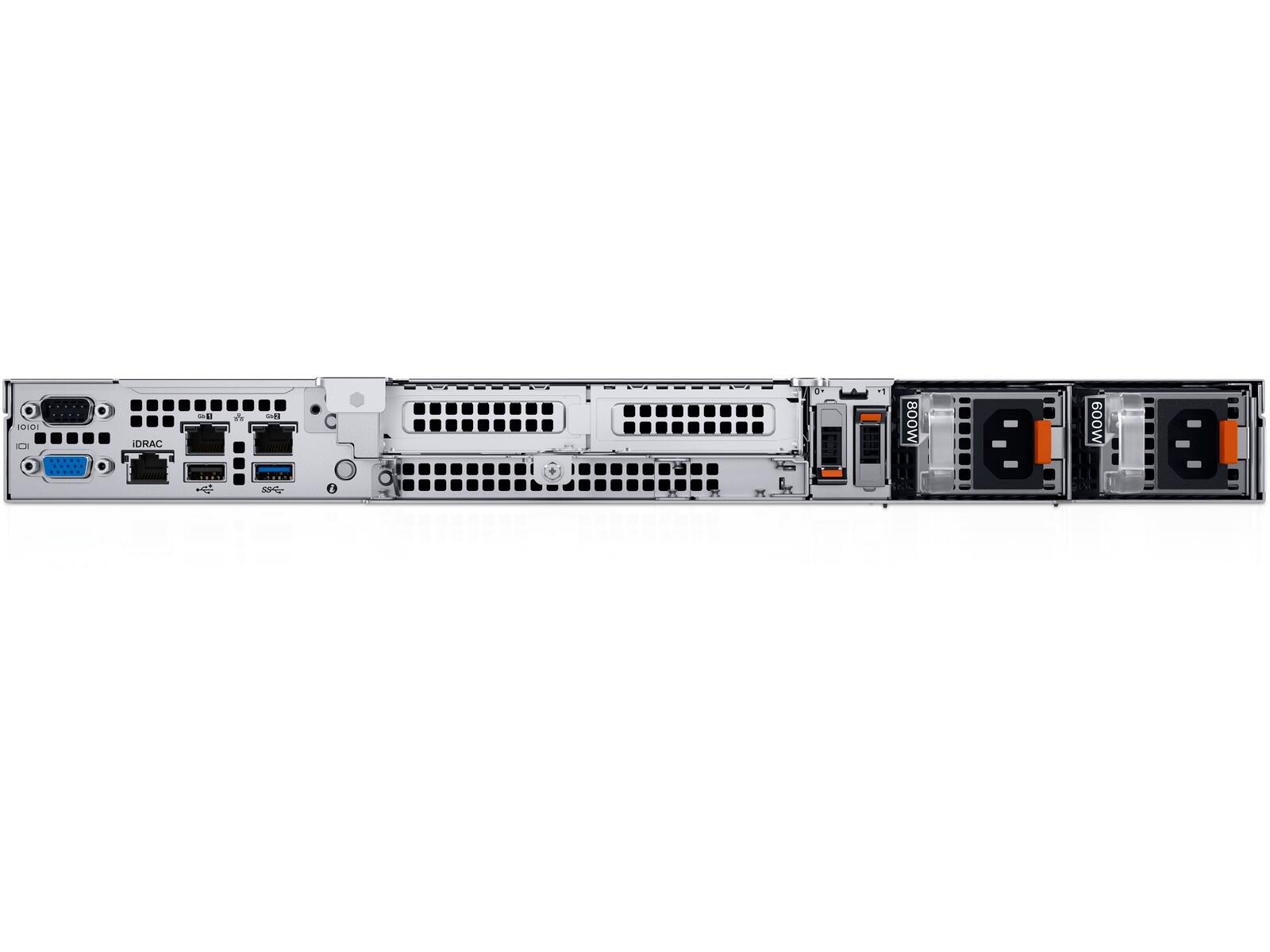

	Rear Ports
	1 x Dedicated iDRAC Ethernet port
	1 x USB 2.0
	1 x USB 3.2 Gen1
	1 x VGA
	1 x Serial
	Internal Ports
	1 x USB 3.2 Gen1
Slots	PCIe
	Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
	Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
	One dedicated PCIe x8 slot on the system board for internal PERC
Chassis	Fans
	Up to 4 fans
Bezel	Security Bezel
	Optional Filter Bezel
Form Factor	1U rack server
Dimensions & Weight	Height
	1.68 inches (42.8 mm)
	Width
	18.97 inches (482.0 mm)
	Depth
	23.57 inches (598.9 mm) with bezel
	23.04 inches (585.3 mm) without bezel
	Weight
	29.17 lbs. (13.23 kg) maximum weight
Rack Support	Stab-in sliding rails with optional cable management arm (CMA) for 4-post racks.
