Overview:

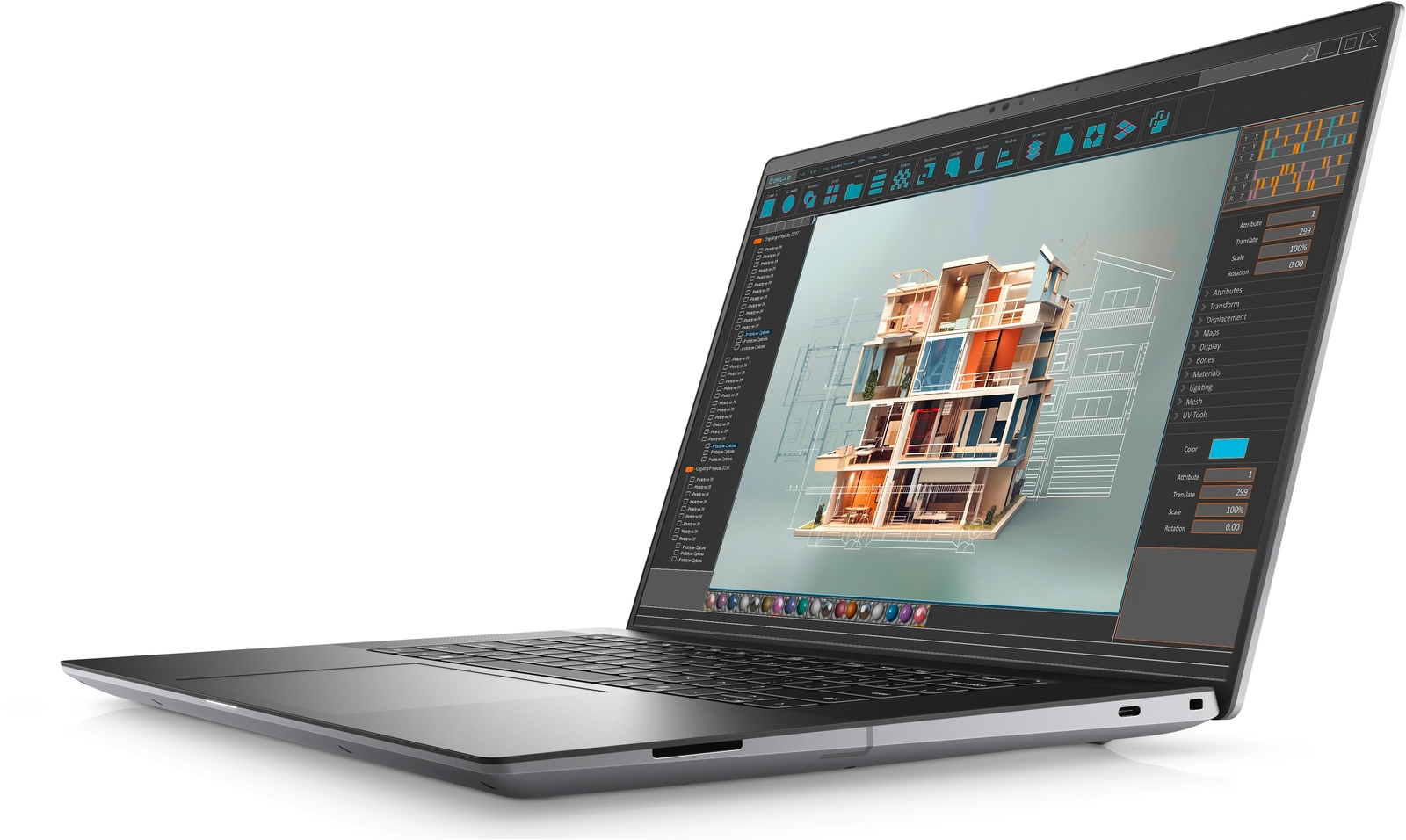

Precision 5690 Workstation
Intelligent performance. Power to create your masterpieces.

A premium workstation built for users who want a large display and exceptional, intelligent performance in a thin and light design. Features FHD HDR IR camera, Haptics trackpad and premium audio for a high-quality experience.

Features:

Product Features
The Precision 5690 has a sleek look and feel that delivers exceptional performance. With an optional OLED 4k touch display, WIFI 7 capabilities

Processor
Fast and efficient IntelCore Ultra 5, 7 and 9 processors 45W options featuring the unique combined AI-engine of CPU, integrated IntelArc graphics GPU, and dedicated low-power AI engine NPU with IntelAI Boost, and Intel vProoptions.

Graphics
Faster integrated graphics and up to NVIDIA RTX 5000 Ada graphics.

Scalable memory
Up to 64GB of LPDDR5x 7467MT/s dual channel memory.

Storage capabilities
2x M.2 2280 slot with PCIe Gen 4x4 support (up to 4TB).

Battery
Up to 6-cell (99.5Whr) Lithium-Ion polymer battery with Express ChargeBoost.

Thermals
Dual Opposite Outlet (DOO) fans, heat pipes, GORE and User Selectable Thermal Tables (USTT).

Experience
The 5690 is set with Haptics trackpad, dual array mics, four premium speakers, and optional touch screen.

Capture
FHD IR camera with HDR complete with ambient light sensor and Windows Hello.

View
Get an expansive 16:10 display with up to UHD+ OLED, DCI-P3 100%, up to 500nits brightness, and PremierColor. Complete with ComfortView Plus options to reduce blue light emissions.

Power to create your masterpieces
Built for work and design with creative applications like:

• Design - 2D, 3D CAD
• Content creation
• Production
• Photo, video and audio editing
• Web Design
• Graphic Design

Independent Software Vendor (ISV) certification
Precision workstations are tested to ensure the high-performance applications you rely on every day run smoothly Dell ISV-certifications cover the most popular independent software applications." style="box-sizing: border-box; text-size-adjust: 100%; border: 0px; padding: 0px; margin: 0px; background-color: inherit; cursor: pointer;">.

Security

• Windows Hello Compatible IR camera recognizes you, increasing privacy and productivity.
• Fingerprint reader Uses biometrics to log you in to Dell Safeguard and response.
• Detect and prevent cyber attacks Dell Safe Data Prevent data breaches.
• SecureWorks responds to security incidents with Safe-mute.
• Dell Peripheral manager intelligent mic muting and video disabling.

VR and AI Compatibility
VR and AI capabilities allow you to experience fully-immersive content. Powerful enough for gaming, education, entertainment, and exploring the digital world. Precision 5690 has next generation professional graphics and powerful performance normally found only in tower workstations.

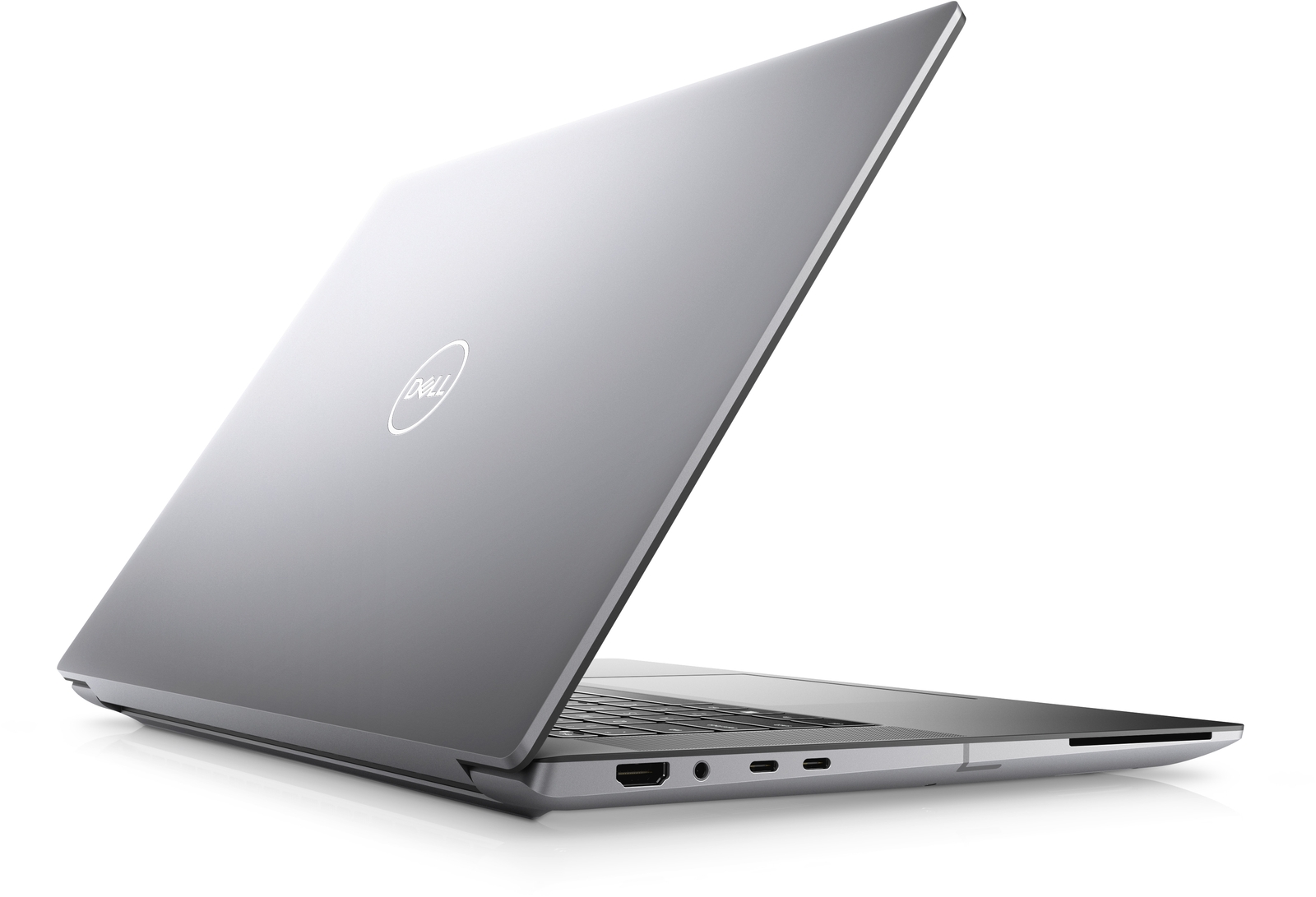

Ports & Slots

• Full-SD, Optional SD 7.0 Express
• USB Type-C/ Display port alt
• Wedge-shaped lock slot
• HDMI 2.1
• Universal audio
• (2) Thunderbolt 4 with PowerDelivery USB Type-C/ Display port alt
• Optional Smart Card reader

Dimensions & Weight

• Height: 0.87 in. (22.17 mm)
• Width: 13.92 in. (353.68 mm)
• Depth: 9.46 in. (240.33 mm)
• Weight (minimum): 4.46 lb (2.03 kg)

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by Laptop Direct CC (https://www.laptopdirect.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Laptop Product Code	N003P5690EMEA_VP
Processor	Up to Intel Core Ultra 9 Processor
Operating System	Windows 11 Pro
Graphics Card	Intel Arc Pro Graphics
	NVIDIA RTX 5000 Ada 16GB GDDR6
	NVIDIA RTX 1000 Ada 6GB GDDR6
Display	16" FHD+ Non-touch, 1920 x 1200, 60Hz, 500 nits, IPS, 100% DCI-P3, Low Blue Light, IR Camera and Mic
	16" OLED Touch, 3840 x 2400, 60Hz, 400 nits, 100% DCI-P3, LBL, IR Camera & Mic with HDR
Memoryi	LPDDR5x 7467 MT/s
Storage	M.2 2230, Gen4 PCIe NVMe, SSD, Class 35
Keyboard	US English Backlight Keyboard with fingerprint reader & AI hotkey
Ports	2 Thunderbolt 4 (40 Gbps) port with Power Delivery
	1 USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode
	1 Universal Audio port
	1 HDMI 2.1 port
Slots	1 SD-card slot (optional)
	1 wedge-shaped lock slot
	1 smartcard reader (optional)
Dimensions & Weight	Height: 0.87 in. (22.17 mm)
	Width: 13.92 in. (353.68 mm)
	Depth: 9.46 in. (240.33 mm)
	Weight (minimum): 4.43 lb (2.01 kg)
Touchpad	Haptics touchpad
Camera	FHD IR camera with HDR, Clover Falls+ presence detection sensor, ambient light sensor, Windows Hello compliance
Audio and Speakers	Stereo speakers with Waves MaxxAudio 13, 4 x 2 W = 8 W total
Chassis	Material:
	Aluminum + resin
	Color:
	Anodized Titan Gray
Wirelessi	Intel Wi-Fi 7 BE200, 2x2, 802.11be, MU-MIMO, Bluetooth wireless card
Primary Battery	6-cell 100Whr Lithium battery
Power	100W E5 Type C Power Adapter
Regulatory	Product Safety, EMC and Environmental Datasheets
	Dell Regulatory Compliance Home Page
	Dell and the Environment
